19 Tones! Push/Pull, CTS blend, Orange Drop Cap, Oak Switch
19 Tones! Push/Pull, CTS blend, Orange Drop Cap, Oak Switch

Alternative Views:

Our Price: $74.00

Availability:: In Stock. Free US Shipping!
Product Code: HARNESS-3

What is it?

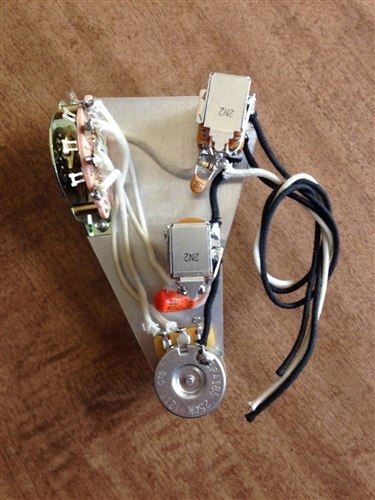

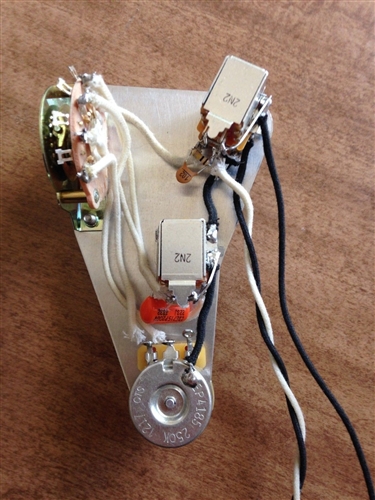

This is a pre-wired stratocaster wiring harness upgrade for H/S/S or H/S/H American or Mexican Fender Stratocasters. Hand wired with the highest quality parts and cleanest solder connections from a professional guitar tech. This wiring harness can give you up to 19 different pickup combinations in a two humbucker one single coil set up H/S/H.

-With this pre-wired harness loaded in your guitar, you will have the swiss army knife for tones.

-An easy access push pull knob on the volume control allows you to split up to two humbuckers in to single coils. This produces a bright and jangly strat tone. This also brings the smoother and softer chime when using the neck and middle or bridge and middle (2 and 4) positions on the five way.

-The middle knob is a push/pull that allows you to reverse the phase of the middle pickup. This allows for 'out of phase' tones when using the neck or bridge pickup with the middle pickup. When two pickups are out of phase it produces a very distinct tone kind of like a wah pedal half way on. You get a squaky snarly sound that is great for funk rhythms and leads. The out of phase sound was made popular by guitar players like Jimmy Page and Brian May and can be heard in many Led Zepplin and Queen songs. Note: the middle knob also severs as a master tone.

-The bottom tone has been changed into a blend pot that allows you to blend the neck and bridge pickups together. This produces a unique tone similar to a telecaster in the middle position. It has a balanced bass and treble response with a softer attack. Sounds great for rhythms. When the blender is all the way up on 10 there will be no effect on the tone. The more you turn the knob down the more the neck and bridge pickups blend together.

-Have you ever noticed how the tone gets muddy and lacks definition when you roll the volume back on the guitar? The treble bleed mod's purpose is to retain your high end or treble response when cutting back on the volume. I have spent a lot of time playing around with different caps and resistors to find the perfect treble bleed mod. The roll off of the volume is smooth and retains a clear bright signal at lower volumes.

19 DIFFERENT TONES! (In a 2 humbucker, 1 single coil set up H/S/H)
1. bridge humbucker
2. bridge split
3. middle/bridge
4. middle/bridge split
5. middle
6. middle/neck
7. middle/neck split
8. neck humbucker
9. neck split
10. neck and bridge humbucker blender together (in 1 or 5 position)
11. neck and bridge split blender together (in 1 or 5 postion)
12. neck, middle, and bridge humbuckers blended together (in 2 and 4 postion)
13. neck/bridge split with middle blended together (in 2 and 4 postion)
14. bridge and middle hums out of phase
15. bridge split/middle out of phase
16. neck and middle out of phase
17. neck split/middle out of phase
18. neck, middle, and bridge out of phase
19. neck/bridge split with middle out of phase

-250k Bourns coil splitting push pull pot on the master volume. Works for bridge and/or neck humbucker pickups. (Also available in 500k).
-treble bleed mod on volume (100k resistor and .001uf cap)
-250k Bourns push/pull master tone and middle pickup phase reversal
-.022mfd Drange Drop capacitor (produces a smooth and even treble roll off when cutting back on the tone controls)
-CTS 250k no load blender
-Oak Grigsby 5 way switch
-Vintage style pull back cloth wire (7 strand 22 gauge wire for the clearest signal path)
-extra ground wire for the bridge claw
-Fender Vintage Stratocaster Aluminum Shield
-Wiring Diagram included
